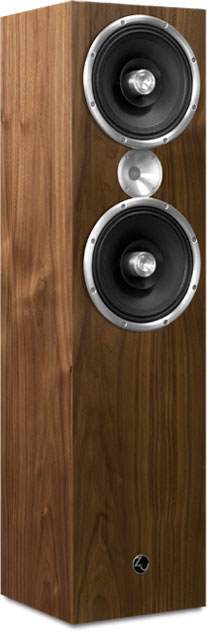

High efficiency, high output, moderate impedance, direct radiating floor standing loudspeaker. Omen Def features Zu’s full-range driver (Zu260FRD/G4), in the Zu Definition architecture, Zu-Griewe driver/box/ room acoustic loading technology, no crossover or filters on full-range drivers, complimented by a phenolic composite dome time-aligned machined from 6061 billet lensed tweeter to provide the acoustic sparkle and resolution from 10kHz and up.
HxWxD: 47 x 12 x 12 [119.4 x 30.5 x 30.5cm]
Footprint: 12 x 12” [30.5 x 30.5 cm]
Weight: 78 pounds [36kg]
Bandwidth: 30—25kHz
Dynamic Range: 122 dB
Efficiency: 98dB SPL @ 1W/1m
Impedance: 6 ohm
Power Amp Range: 2—400 watt
Tweeter Detail: 1x Zu APT-L2 tweeter assembly with stainless screen // bandwidth: 12k—25kHz
High-Pass Filter Detail: 1st order bessel @ 18kHz (12kHz acoustical) Mundorf Silver/Oil 1uF + Mills 10Ω 12.5W R, silver/copper/Tefl on leadouts
Full-range Driver Detail: 2x Zu260FRD/G4, 10-1/3” full-range driver // bandwidth: 30—12kHz (direct and unfi ltered)
Life Expectancy: 100 years; cabinet, and drivers, including the Zu 10” drivers; even in direct sunlight
